Brand: DSZH 大圣纵横
– For use with soft copper, aluminium and brass tubing.
– Faceted, hard chrome
– Finished cone rolls out perfect 45°flares above die block, then automatically burnishes flare face. Original wall thickness is maintained at base of flare.
– New slip-on yoke permits use in tight quarters where there is little space between nut and tube end.
– Larger handle, with better leverage, and precision threads on feed screw make flaring effortless.
– Heat treated dies firmly grip tubing. Satin chrome and black finish.

Steps for use:

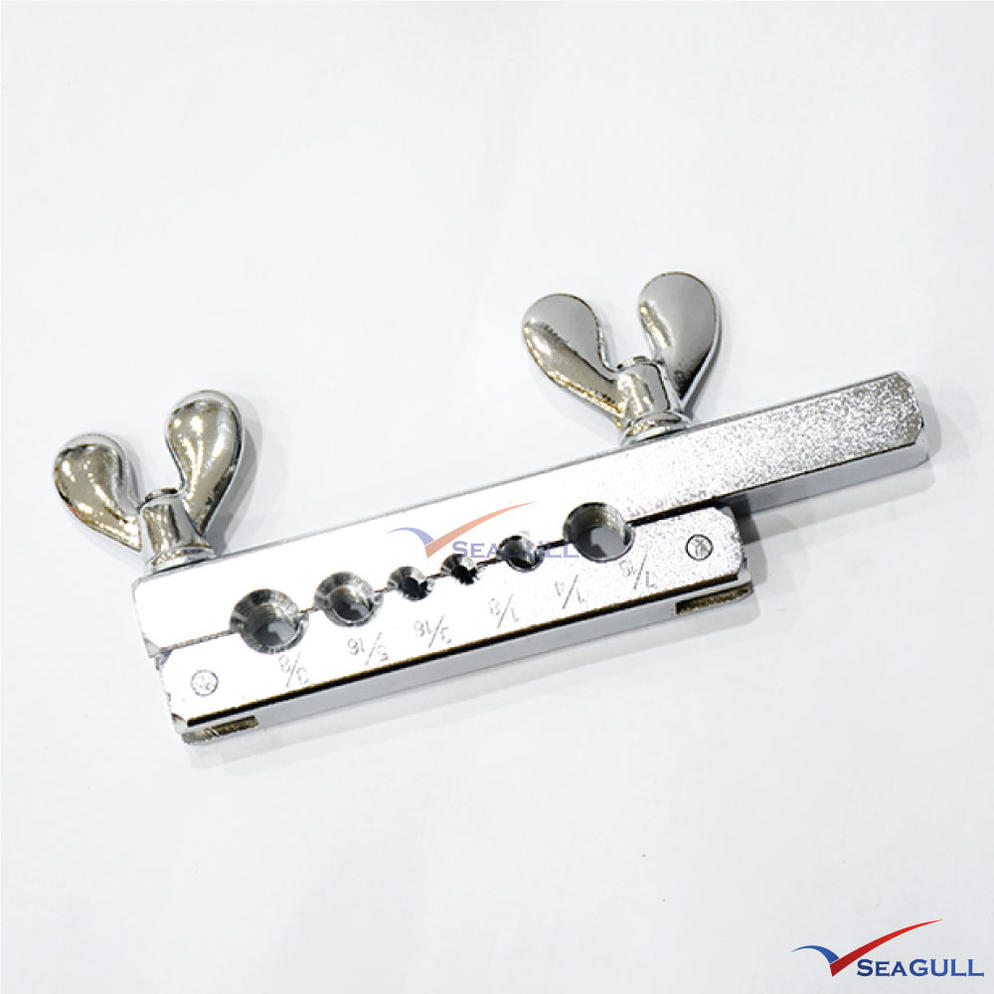

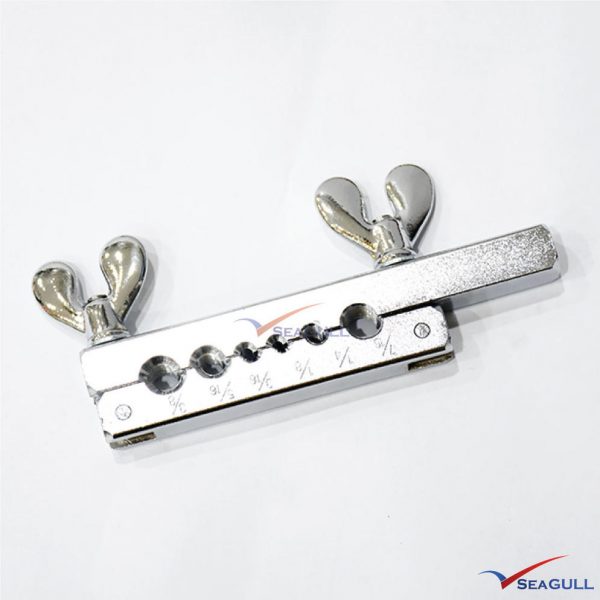

1) Insert tubing into adjustable opening of tube holding assembly. Position end of tubing approximately 1/8″ above the surface of holder.
2) Tighten clamp screw approximately 1/2 to 3/4 of a turn beyond free travel position to secure tubing.

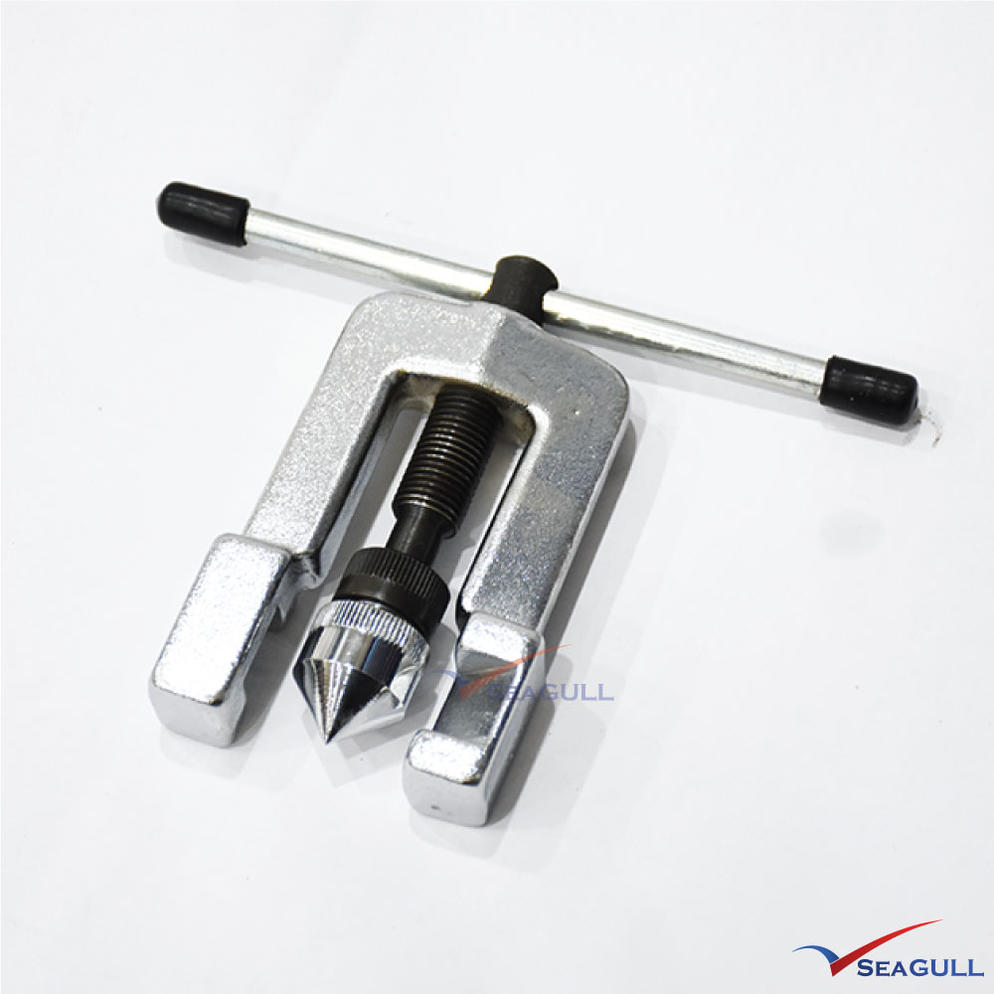

3) Be certain flaring cone surface is oiled. Slip yoke over tube holding assembly centering on tubing. Twist yoke clockwise to lock in position. Turn yoke handle clockwise to flare.

Available for: 3/16″,1/4″,5/16″,3/8″,7/16”,1/2″&5/8″O.D.

Weight: 1 kg
